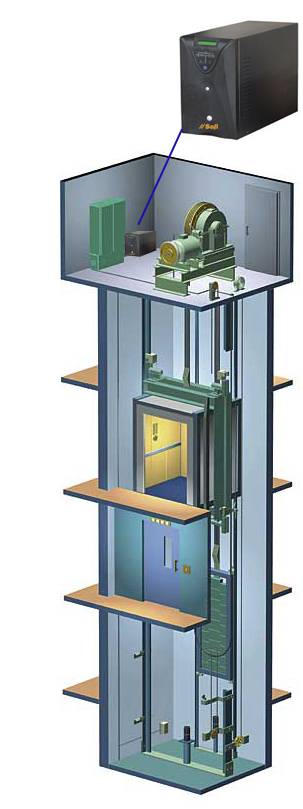

Bộ cứu hộ thang máy UPS 1 pha SOJI cho động cơ 3.7kW -22kW

MODEL

FJ605N

FJ610N

FJ615N

FJ620N

FJ630N

Capacity

500 VA / 300 W

1000 VA / 800 W

1500 VA / 1200 W

2000 VA / 1600 W

3000 VA / 2400 W

DC INPUT

Rated voltage

12 V

24 V

36 V (S)

48 V (H)

48 V

DC input range (default)

10 ~ 15V

20 ~ 30 V

30 ~ 45 V (S)

40 ~ 60 V (H)

40 ~ 60V

AC INPUT

AC input range (bypass mode)

0 ~ 121 V / 132 V / 138 V / 144 Vac for 100 V / 110 V / 115 V / 120 Vac ± 10 Vac

0 ~ 242 V / 264 V / 276 V / 288 Vac for 200 V / 220 V / 230 V / 240 Vac ± 10 Vac

AC input range (mains mode)

100 V: 70 ~ 130 Vac    110 V: 80 ~ 140 Vac     115 V: 85 ~ 145 Vac

120 V: 90 ~ 150 Vac    200 V: 145 ~ 260 Vac    220 V: 165 ~ 280 Vac

230 V: 175 ~ 290 Vac   240 V: 185 ~ 300 Vac

Frequency input range

50 Hz / 60 Hz (auto-sense), 50 Hz / 60 Hz ± 5% ~ 15%

Generator connection

Available (generator input power is settable)

OUTPUT

Inverter output range

100 V / 110 V / 115 V / 120 Vac ± 5% (settable)

200 V / 220 V / 230 V / 240 Vac ± 5% (settable)

AC output range (bypass mode)

0 ~ 121 V / 132 V / 138 V / 144 Vac for 100 V / 110 V / 115 V / 120 Vac ± 10 Vac

0 ~ 242 V / 264 V / 276 V / 288 Vac for 200 V / 220 V / 230 V / 240 Vac ± 10 Vac

AC output range (mains mode)

100 V: 90 ~ 110 Vac     110 V: 99 ~ 121 Vac     115 V: 103 ~ 126 Vac

120 V: 108 ~ 132 Vac    200 V: 166 ~ 226 Vac    220 V: 188 ~ 245 Vac,

230 V: 199 ~ 254 Vac    240 V: 210 ~ 264 Vac

Output frequency

50 / 60 Hz ± 0.3 Hz (settable)

Waveform

Pure sine wave

Inverter efficiency

Max. 75%

Max. 80%

Max. 85%

Energy saving mode

Settable (< 3% load) , enter in 80 s

No-load shutdown

Settable (< 3% load), shut down in 80 s

Transfer time

≤ 10 ms

THDV

(resistive load)

≤ 5%

Protections

Overload, short circuit (inverter), battery low voltage, battery overcharge, overtemperature

Overload time

(mains mode)

120 s for 110%, 60 s for 125%, 10 s for 150% (transfer to bypass mode)

Overload time

(inverter mode)

60 s for 110%, 10 s for 125%, 5 s for 150% (Shut down directly)

Mute

Automatic mute in 60 s or by manual

BATTERIES

Battery capacity

(H: external expansion)

12 V x 1

12 V / 7 Ah x 2

12 V / 9 Ah x 2

12 V / 9 Ah x 3    (H: 12 V x 4)

12 V / 9 Ah x 4

Charging current

Standard model (S): 1 A (default)

Long time model (H): 10 A (default); < 10 A, set step 1 A; ≥ 10 A, set step 5 A

Max. 10 A (H)

Max. 15 A (H)

----

Max. 20 A (H)

Max. 25 A (H)

Equalizing

charge voltage

Single battery 14.1 Vdc (default), 13.6 ~ 15 Vdc adjustable

Floating charge voltage

Single battery 13.5 Vdc (default), 13.2 ~ 14.6 Vdc adjustable

Low voltage alarm point

Single battery 10.8 Vdc (default), 9.6 ~ 13 Vdc adjustable

Low voltage shutdown point

Single battery 10.2 Vdc (default), 9.6 ~ 11.5 Vdc adjustable

COMMUNICATIONS

USB+RJ45

Supports Windows® 98 / 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10

SNMP (optional)

Power management from SNMP manager and web browser (standard with slot)

OTHERS

Operating temperature

5℃ ~ 40℃

Operating humidity

Relative humidity ≤ 93%

Noise level

≤ 50 dB (1m)

Tower

Dimensions (W×D×H) (mm)

144 x 345 x 215 (S / H)

144 x 410 x 215

(S)

144 x 345 x 215

(H)

190 x 467 x 335.5

(S / H)

Packaged dimensions (W×D×H) (mm)

236 x 427 x 316 (S / H)

236 x 492 x 316

(S)

236 x 427 x 316

(H)

320 x 592 x 462

(S / H)

Net weight (kg)

7.0 (H)

12.2 (S)

11.6 (H)

14.2 (S)

18.5 (S)

17.8 (H)

28.1 (S)

28.0 (H)

Gross weight (kg)

8.0 (H)

13.2 (S)

12.6 (H)

15.2 (S)

19.8 (S)

18.8 (H)

30.2 (S)

30.0 (H)

Rack mount

Dimensions (W×D×H) (mm)

--

440 × 338 × 88

(S)

440 × 410 × 132 (S)

Packaged dimensions (W×D×H) (mm)

--

611 × 448 × 208

(S)

611 × 505 × 235 (S)

Net weight (kg)

--

14.6 (S)

17.2 (S)

21.3 (S)

26.7 (S)

Gross weight (kg)

--

16.8 (S)

20.4 (S)

24.5 (S)

30.5 (S)
